 / WCB 8" 300LB Dual Plate Wafer Check Valve API 594

WCB 8 300LB Dual Plate Wafer Check Valve API 594

WCB 8" 300LB Dual Plate Wafer Check Valve API 594

8" 300LB Dual Plate Wafer Check Valve is made according to API594 standard. Made by WCB, 8" 300LB Dual Plate Wafer Check Valve has the structural characteristics of Dual Plate Wafer Type. It has RF type connection mode.

  • Lead Time:

    30~60 days Ex Works after order confirmation

  • Product Orgin:

    china

  • Shipping Port:

    Shanghai, China

  • Payment:

    30% when order confirmed, 70% before shipment

  • Color:

    Customization

  • Medium:

    Water Oil and Gas

  • Warranty period:

    18 months after shipment or 12 months after use

  • Body Material:

    WCB

  • Design Standard:

    API 594
Inquiry now

Download

Download
HERE YOU CAN FIND ALL TECHNICAL AND MARKETING DOCUMENTS RELATED TO THIS PRODUCT.
DOWNLOADS
  • Product Detail

Product Parameters

Product Type

Dual Plate Wafer Check Valve

Product Size

8"

Product Pressure

300LB

Connection Type

RF Type

Pressure-temperature

ANSI B16.34

Flange ends

ANSI B16.5

Face to Face Dimension

API 594

Test & Inspection Code

API 598


Features

1.Dual plate wafer check valve designed according to API 594 standard for compact structure and efficient non-return performance.

2.WCB carbon steel body with 300LB pressure rating, suitable for high-pressure oil, gas, and industrial pipeline applications.

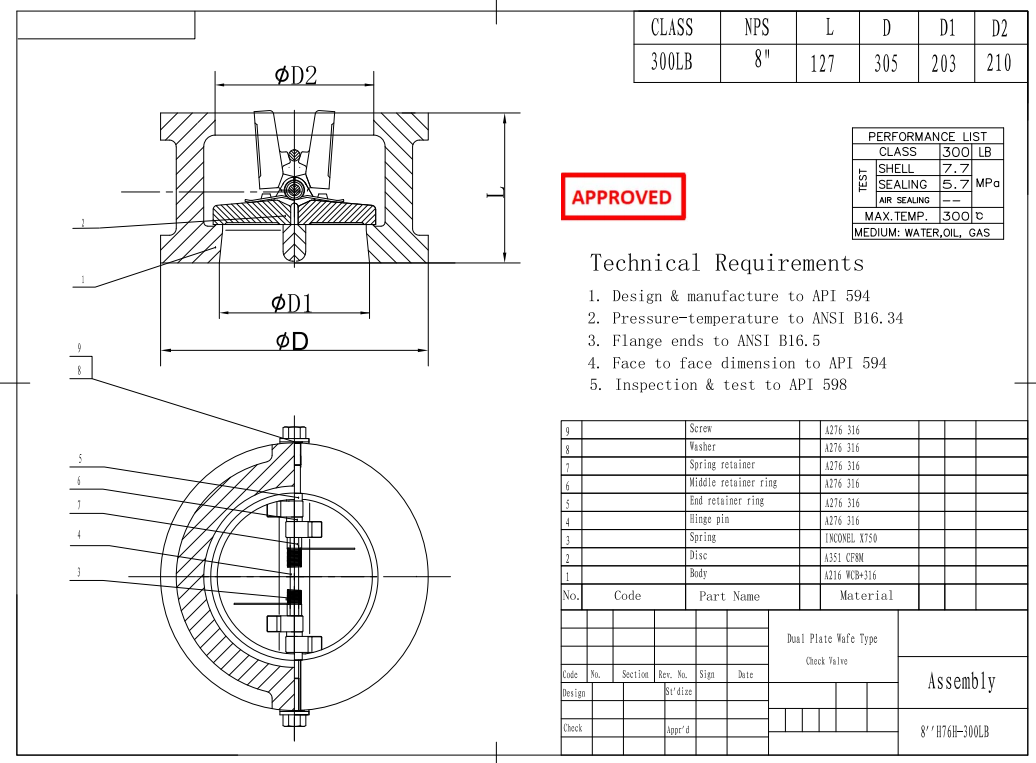

Technical Drawing

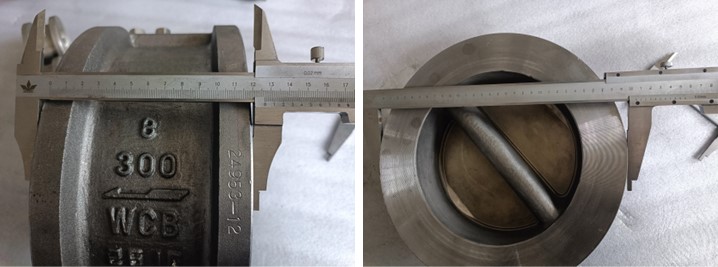

Dimension Checking

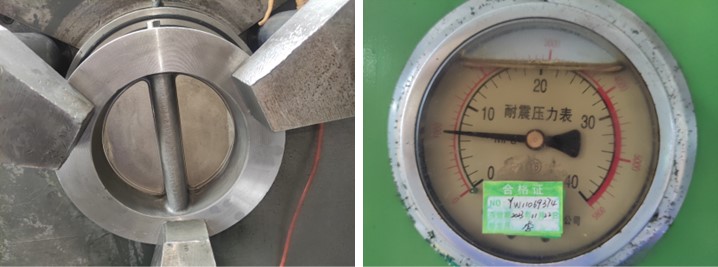

Pressure Testing

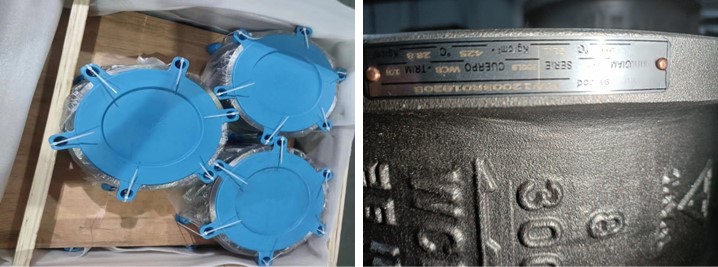

Nameplate & Packing



FAQ

1. Can the orders always be delivered on time?

Our purchasing team follows up very closely with each order to make sure on-time delivery for most of orders.

2. What’s the normal delivery lead time? For normal material, usually the delivery time is about 35~40 days, and for forged material, the delivery can even be shortened to 20~25 days. We believe the short lead time can make our offer more competitive and help you secure more orders.

3. Do you have different price levels for us?With our numerous suppliers, different price levels are available with us, so we are able to help you win more customer from different markets requesting for high, medium and low prices.
