WCB 8 150LB Dual Plate Lug Type Wafer Check Valve API594

WCB 8" 150LB Dual Plate Lug Type Wafer Check Valve API594

8" 150LB Dual Plate Wafer Check Valve is made according to API 594 standard. Made by A216 WCB, 8" 150LB wafer check valve has the structural characteristics of dual disc and wafer type. It has Wafer RF connection mode.

  • Lead Time:

    30~60 days Ex Works after order confirmation

  • Product Orgin:

    china

  • Shipping Port:

    Shanghai, China

  • Payment:

    30% when order confirmed, 70% before shipment

  • Color:

    Customization

  • Medium:

    Water Oil and Gas

  • Warranty period:

    18 months after shipment or 12 months after use

  • Body Material:

    A216 WCB+316

  • Design Standard:

    API 594
Inquiry now

Download

Download
HERE YOU CAN FIND ALL TECHNICAL AND MARKETING DOCUMENTS RELATED TO THIS PRODUCT.
DOWNLOADS
  • Product Detail

Features

1. The wafer design makes the valve compact and lightweight compared to traditional check valves, ideal for installations with space constraints;

2. Widely used in industries such as oil, chemical processing, power generation, water supply, and environmental protection, particularly in systems requiring reliable backflow prevention.

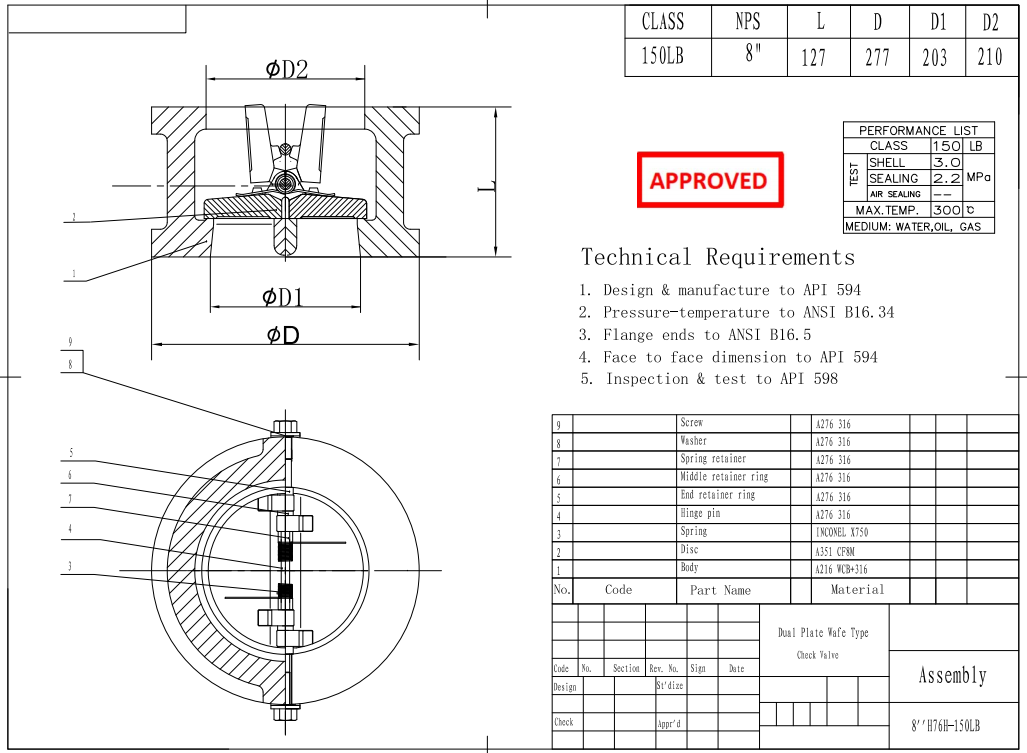

Technical Drawing

WCB 8" 150LB Dual Plate Lug Type Wafer Check Valve API594

Product Description

Product Type

Dual Plate Wafer Check Valve

Product Size

8"

Product Pressure

150LB

Connection Type

Wafer RF

Pressure-temperature

ANSI B16.34

Flange Ends Dimension

ANSI B16.5

Face to Face Dimension

API 594

Test & Inspection Code

API 598

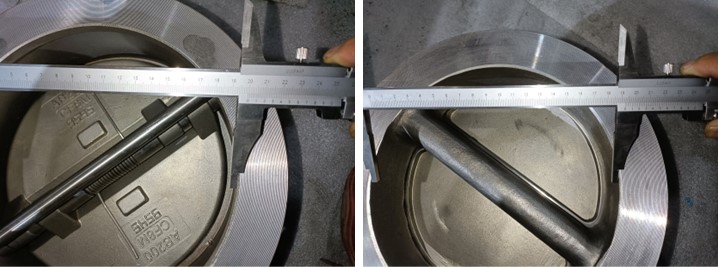

Dimension Checking

WCB 8" 150LB Dual Plate Lug Type Wafer Check Valve API594

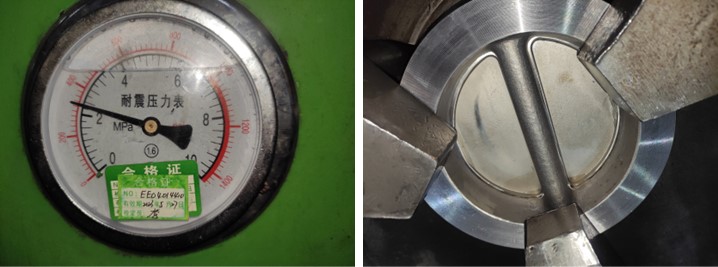

Pressure Testing

WCB 8" 150LB Dual Plate Lug Type Wafer Check Valve API594

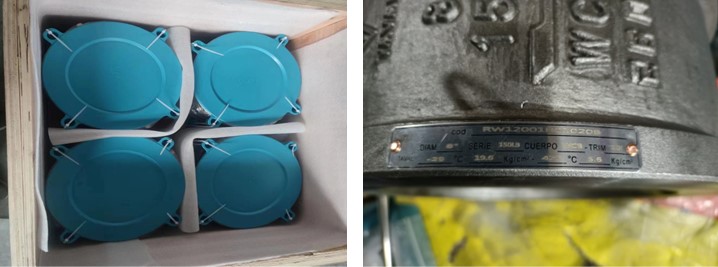

Packing

WCB 8" 150LB Dual Plate Lug Type Wafer Check Valve API594

FAQ

1. Can the orders always be delivered on time?

Our purchasing team follows up very closely with each order to make sure on-time delivery for most of orders.

2. What’s the normal delivery lead time? For normal material, usually the delivery time is about 35~40 days, and for forged material, the delivery can even be shortened to 20~25 days. We believe the short lead time can make our offer more competitive and help you secure more orders.

3. Do you have different price levels for us?With our numerous suppliers, different price levels are available with us, so we are able to help you win more customer from different markets requesting for high, medium and low prices.
