Wafer Check Valve
Home /

Wafer Check Valve

 / WCB 4" 150LB Dual Plate Wafer Type Check Valve API594

WCB 4 150LB Dual Plate Wafer Type Check Valve API594

WCB 4" 150LB Dual Plate Wafer Type Check Valve API594

4" 150LB Dual Plate Wafer Type Check Valve is made according to API594 standard. Made by WCB, 4" 150LB Dual Plate Wafer Type Check Valve has the structural characteristics of Dual Plate Wafer Type, Internal Pin. It has RF type connection mode.

  • Lead Time:

    30~60 days Ex Works after order confirmation

  • Product Orgin:

    china

  • Shipping Port:

    Shanghai, China

  • Payment:

    30% when order confirmed, 70% before shipment

  • Color:

    Customization

  • Medium:

    Water Oil and Gas

  • Warranty period:

    18 months after shipment or 12 months after use

  • Body Material:

    WCB

  • Design Standard:

    API 594
Inquiry now

Download

Download
HERE YOU CAN FIND ALL TECHNICAL AND MARKETING DOCUMENTS RELATED TO THIS PRODUCT.
DOWNLOADS
  • Product Detail

Product Parameters

Product Type

Dual Plate Wafer Type Check Valve

Product Size

4"

Product Pressure

150LB

Connection Type

RF Type

Pressure-temperature

ANSI B16.34

Flange ends

ANSI B16.5

Face to Face Dimension

API 594

Test & Inspection Code

API 598


Features

1.Dual plate wafer type check valve designed in accordance with API 594, providing low pressure drop and reliable backflow prevention.

2.WCB carbon steel construction with 150LB pressure rating, suitable for general industrial, oil, and gas pipeline systems.

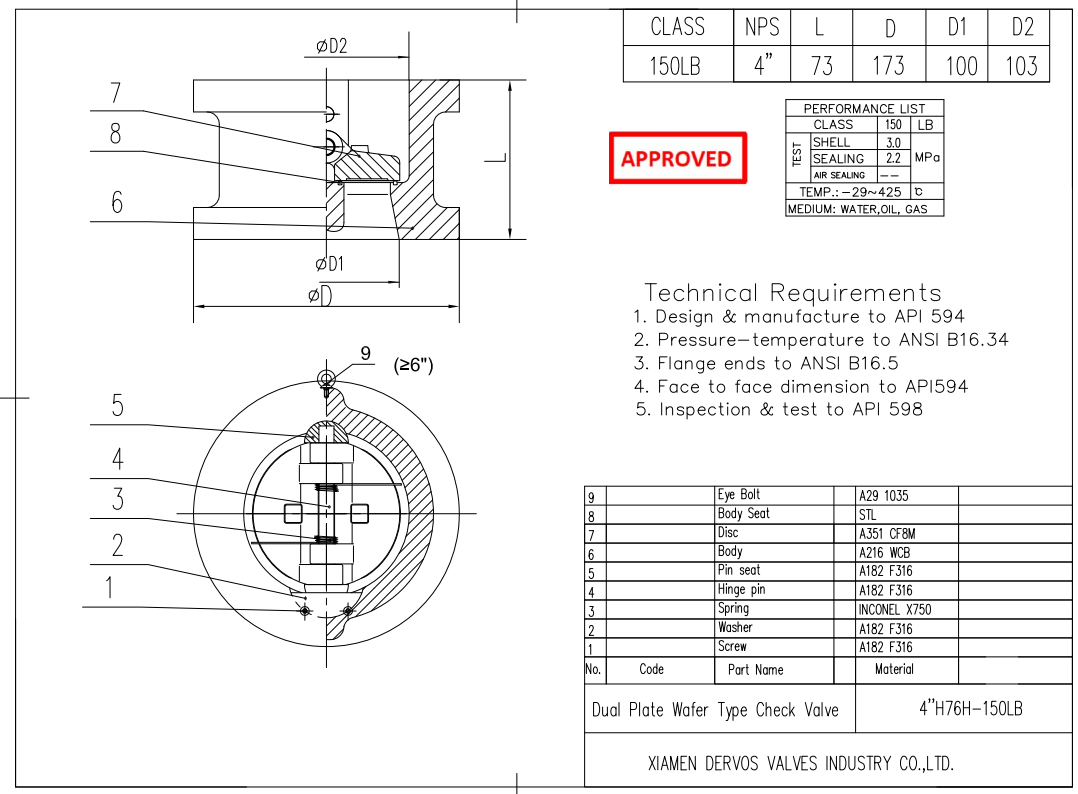

Technical Drawing

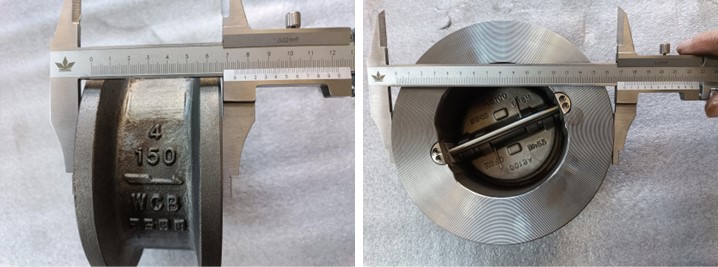

Dimension Checking

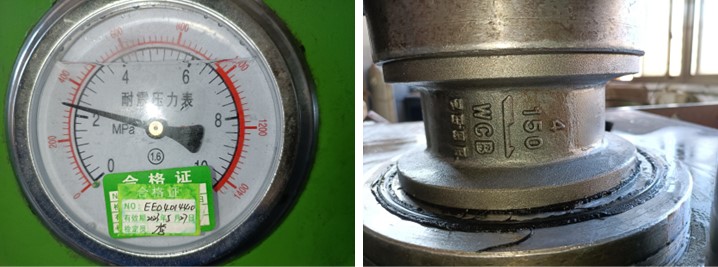

Pressure Testing

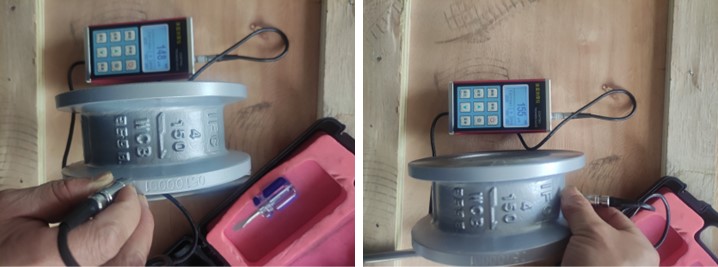

Painting

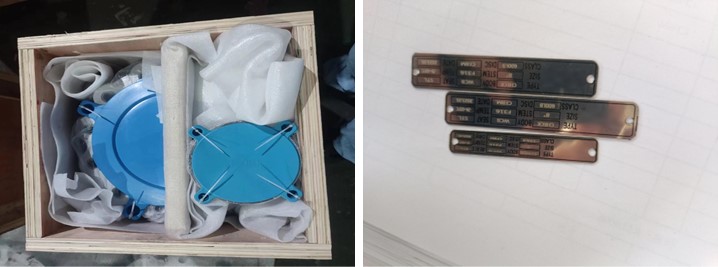

Nameplate & Packing



FAQ

1. Can the orders always be delivered on time?

Our purchasing team follows up very closely with each order to make sure on-time delivery for most of orders.

2. What’s the normal delivery lead time?For normal material, usually the delivery time is about 35~40 days, and for forged material, the delivery can even be shortened to 20~25 days. We believe the short lead time can make our offer more competitive and help you secure more orders.

3. Do you have different price levels for us?With our numerous suppliers, different price levels are available with us, so we are able to help you win more customer from different markets requesting for high, medium and low prices.



get a quote

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Related products
Wafer Check Valve
API594 3" 150LB Dual Plate Wafer Check Valve A995 5A
3" 150LB wafer check valve is made according to API 594 standard. Made by A995 5A, 3" 150LB wafer check valve has the structural characteristics of dual plate and built-in type. It has wafer type connection mode.
Wafer Check Valve
2" 1500LB Dual Plate Wafer Check Valve Lug Type API594
2" 1500LB wafer check valve is made according to API 594 standard. Made by A182 F51, 2" 1500LB wafer check valve has the structural characteristics of dual plate and built-in type. It has lug type connection mode.
Wafer Check Valve
CF8M API594 20" 150LB Dual Plate Wafer Check Valve
20" 150LB wafer check valve is made according to API 594 standard. Made by A351 CF8M, 20" 150LB wafer check valve has the structural characteristics of dual plate and built-in type. It has wafer RF connection mode.
Wafer Check Valve
Dual Plate Wafer Check Valve 10" 150LB API CF8M + STL
10" 150LB wafer check valve is made according to API 594 standard. Made by A351 CF8M + STL, 10" 150LB wafer check valve has the structural characteristics of dual plate and built-in type. It has wafer type connection mode.
Wafer Check Valve
API WCB 20" 300LB Dual Plate Wafer Check Valve
20" 300LB wafer check valve is made according to API 594 standard. Made by WCB, 20" 300LB wafer check valve has the structural characteristics of dual plate and built-in type. It has wafer type connection mode.
Wafer Check Valve
8" 150LB Dual Plate Wafer Check Valve API WCB
8" 150LB wafer check valve is made according to API 594 standard. Made by A216 WCB + 316, 8" 150LB wafer check valve has the structural characteristics of dual plate. It has wafer type connection mode.
Wafer Check Valve
LCC 3" 150LB Dual Plate Wafer Check Valve API594 API598
3" 150LB wafer check valve is made according to API 594 standard. Made by A352 LCC + 316, 3" 150LB wafer check valve has the structural characteristics of dual plate and built-in type. It has wafer type connection mode.
Wafer Check Valve
API594 598 12" 150LB Dual Plate Wafer Check Valve Wafer (RF)
12" 150LB wafer check valve is made according to API 594 standard. Made by WCB+316, 12" 150LB wafer check valve has the structural characteristics of dual plate. It has wafer (RF) connection mode.
