 / WCB 16" 300LB Dual PIate Wafer Swing Check Valve API 594

WCB 16 300LB Dual PIate Wafer Swing Check Valve API 594

WCB 16" 300LB Dual PIate Wafer Swing Check Valve API 594

16" 300LB Swing Check Valve is made according to API 594 standard. Made by WCB, 16" 300LB Swing Check Valve has the structural characteristics of Dual Plate Wafer Type, Internal Pin. It has Double Flanged type connection mode.

  • Lead Time:

    30~60 days Ex Works after order confirmation

  • Product Orgin:

    china

  • Shipping Port:

    Shanghai, China

  • Payment:

    30% when order confirmed, 70% before shipment

  • Color:

    Customization

  • Medium:

    Water Oil and Gas

  • Warranty period:

    18 months after shipment or 12 months after use

  • Body Material:

    WCB

  • Design Standard:

    API 594
Inquiry now

Download

Download
HERE YOU CAN FIND ALL TECHNICAL AND MARKETING DOCUMENTS RELATED TO THIS PRODUCT.
DOWNLOADS
  • Product Detail

Product Parameters

Product Type

Swing Check Valve

Product Size

16"

Product Pressure

300LB

Connection Type

BSP Type

Pressure-temperature

ANSI B16.34

Ends Connection

Double Flanged

Face to Face Dimension

API594

Test & Inspection Code

API 598


Features

1.Dual plate wafer swing check valve designed per API 594, offering compact face-to-face dimensions and efficient non-slam closure performance.

2.WCB carbon steel body with 300LB pressure rating, suitable for large-diameter high-pressure pipeline systems in oil, gas, and industrial service.

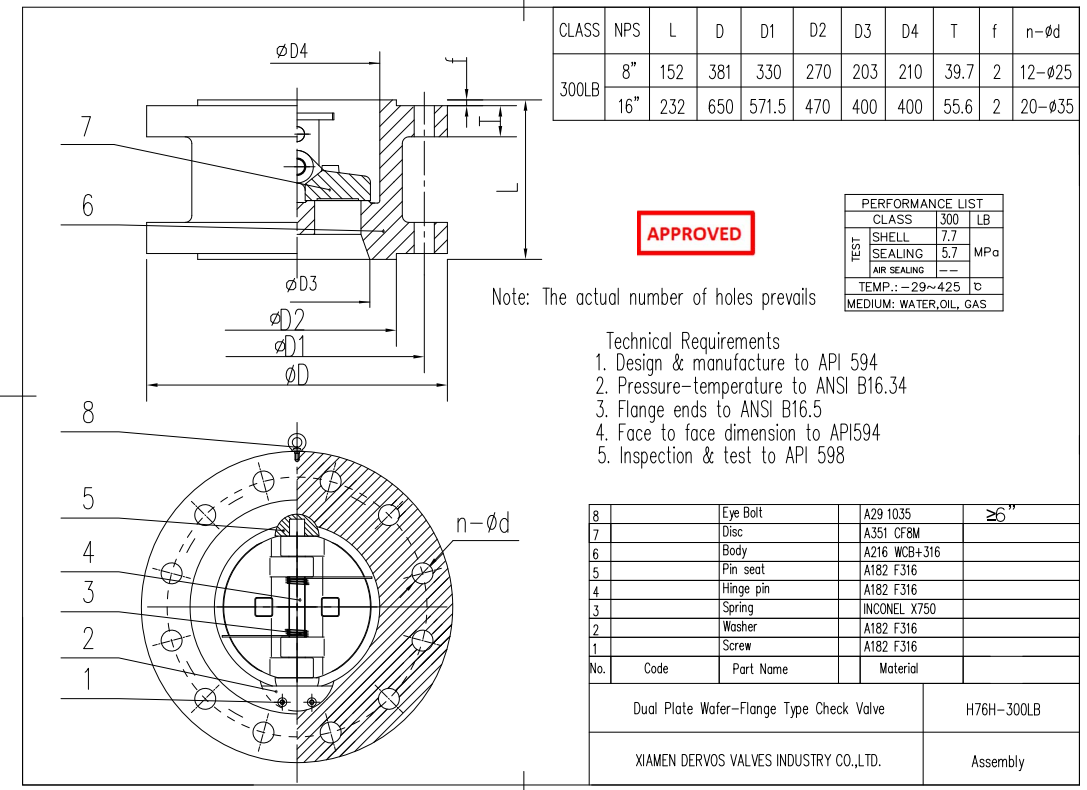

Technical Drawing

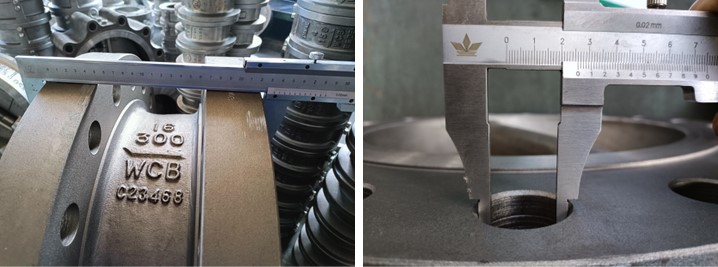

Dimension Checking

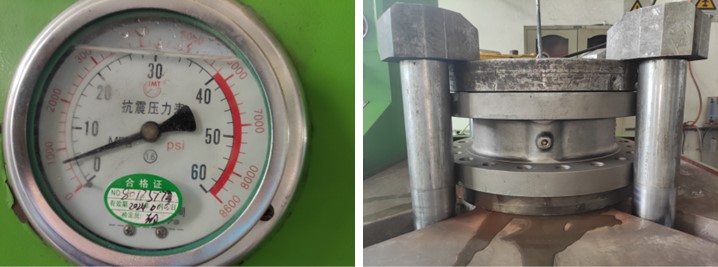

Pressure Testing

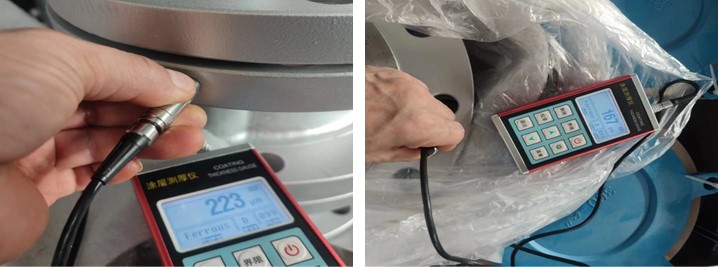

Painting

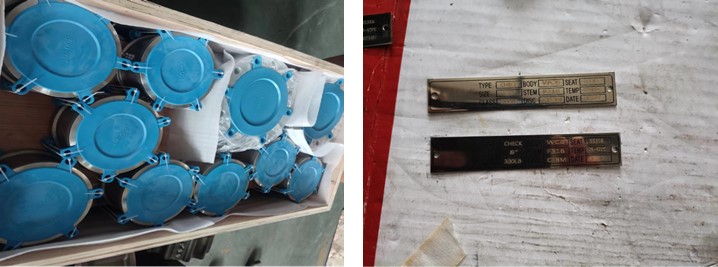

Nameplate & Packing


FAQ

1. Can the orders always be delivered on time?

Our purchasing team follows up very closely with each order to make sure on-time delivery for most of orders.

2. What’s the normal delivery lead time?

For normal material, usually the delivery time is about 35~40 days, and for forged material, the delivery can even be shortened to 20~25 days. We believe the short lead time can make our offer more competitive and help you secure more orders.

3. Do you have different price levels for us?

With our numerous suppliers, different price levels are available with us, so we are able to help you win more customer from different markets requesting for high, medium and low prices.
