10" 150LB Dual Plate Wafer Check Valve WCB API594

10" 150LB wafer check valve is made according to API 594 standard. Made by WCB, 10" 150LB wafer check valve has the structural characteristics of dual plate and built-in type. It has wafer RF type connection mode.

Lead Time:
30~60 days Ex Works after order confirmation
Product Orgin:
China
Shipping Port:
Shanghai, China
Payment:
30% when order confirmed, 70% before shipment
Color:
Customization
MOQ:
1

Medium:
Water Oil and Gas
Warranty period:
18 months after shipment or 12 months after use
Body Material:
A216 WCB
Design Standard:
API 594

Inquiry now

Categories

Download

HERE YOU CAN FIND ALL TECHNICAL AND MARKETING DOCUMENTS RELATED TO THIS PRODUCT.

DOWNLOADS

Hot Products

Product Detail

Features

1. The main function of this valve in the pipeline system is to prevent the medium from backflow;

2. The valve clack can be closed quickly, and the valve has the function of waterproof hammer;

3. Good sealing performance, long service life and high reliability.

Technical Drawing

Product Description

Product Type	Wafer Check Valve
Product Size	10"
Product Pressure	150LB
Connection Type	Wafer RF Type
Pressure-temperature	ANSI B16.34
Flange Ends Dimension	ANSI B16.5
Face to Face Dimension	API 594
Test & Inspection Code	API 598
MAX. TEMP.	200°C

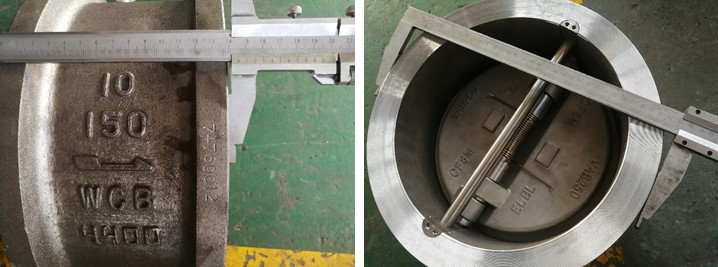

Dimension Checking

Pressure Testing

Painting

Nameplate & Packing

FAQ

1. Can the orders always be delivered on time?

Our purchasing team follows up very closely with each order to make sure on-time delivery for most of orders.

2. What’s the normal delivery lead time?

For normal material, usually the delivery time is about 35~40 days, and for forged material, the delivery can even be shortened to 20~25 days. We believe the short lead time can make our offer more competitive and help you secure more orders.

3. Do you have different price levels for us?

With our numerous suppliers, different price levels are available with us, so we are able to help you win more customer from different markets requesting for high, medium and low prices.

get a quote

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
