 / WCB 4" 150LB Dual Plate Lug Type Wafer Check Valve API594

WCB 4 150LB Dual Plate Lug Type Wafer Check Valve API594

WCB 4" 150LB Dual Plate Lug Type Wafer Check Valve API594

  • Lead Time:

    30~60 days Ex Works after order confirmation

  • Product Orgin:

    china

  • Shipping Port:

    Shanghai, China

  • Payment:

    30% when order confirmed, 70% before shipment

  • Color:

    Customization

  • Medium:

    Water Oil and Gas

  • Warranty period:

    18 months after shipment or 12 months after use

  • Body Material:

    A216 WCB

  • Design Standard:

    A216 WCB
Inquiry now

Download

Download
HERE YOU CAN FIND ALL TECHNICAL AND MARKETING DOCUMENTS RELATED TO THIS PRODUCT.
DOWNLOADS
  • Product Detail

Product Parameters

Product Type

Dual Plate Lug Type Wafer Check Valve

Product Size

4"

Product Pressure

150LB

Connection Type

Lug Type

Pressure-temperature

ANSI B16.34

Flange Ends Dimension

ANSI B16.5

Face to Face Dimension

API 594

Test & Inspection Code

API 598


Features

1.Manufactured from WCB cast steel, providing high strength and durability for 150LB pressure applications.

2.Dual plate lug-type wafer design compliant with API 594 ensures compact installation and reliable backflow prevention.

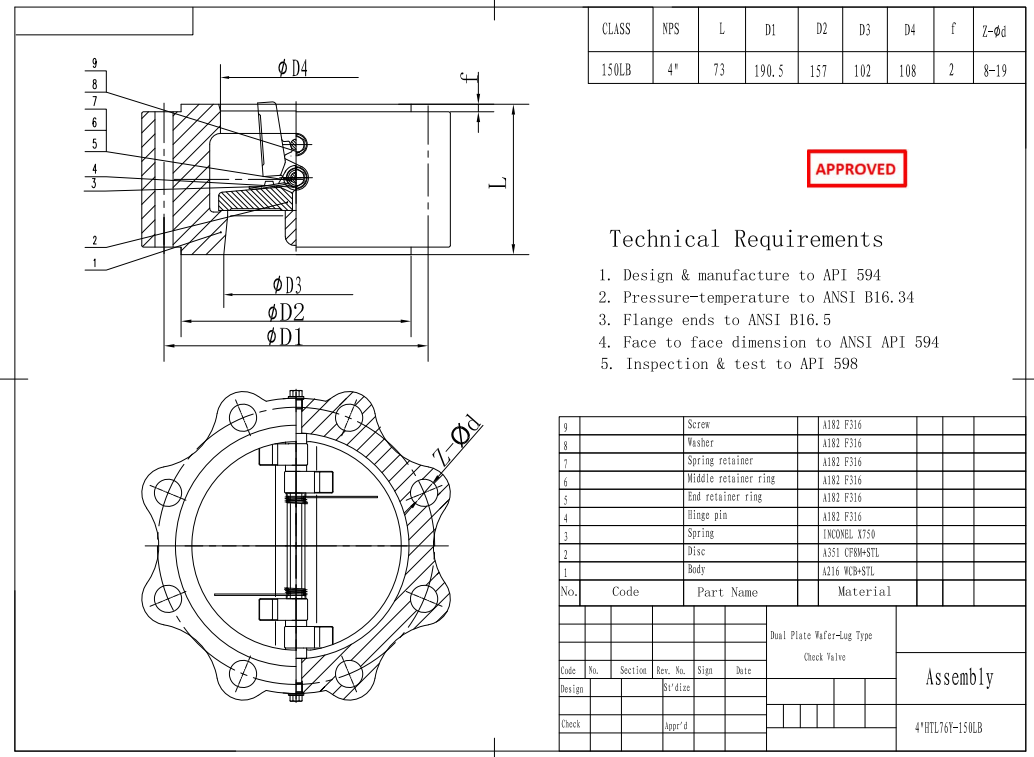

Technical Drawing

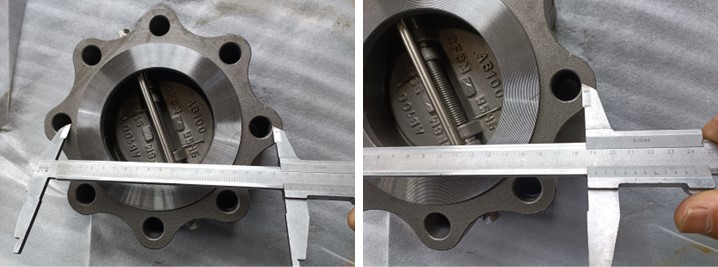

Dimension Checking

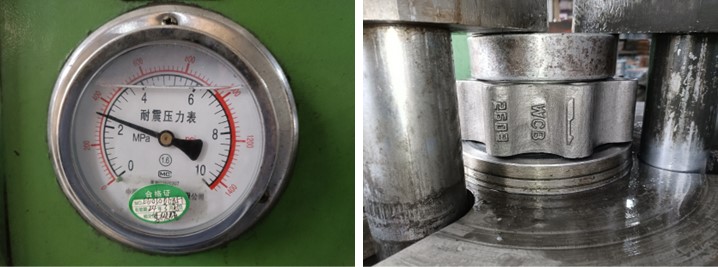

Pressure Testing

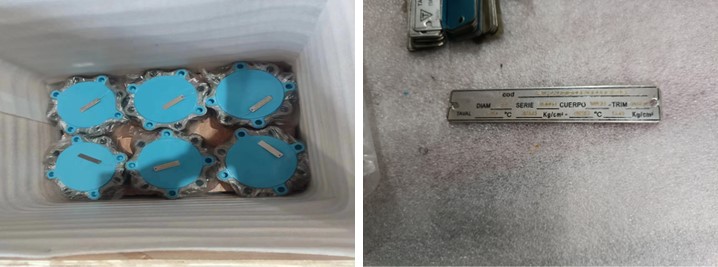

Nameplate & Packing

FAQ

1. Can the orders always be delivered on time?

Our purchasing team follows up very closely with each order to make sure on-time delivery for most of orders.

2. What’s the normal delivery lead time? For normal material, usually the delivery time is about 35~40 days, and for forged material, the delivery can even be shortened to 20~25 days. We believe the short lead time can make our offer more competitive and help you secure more orders.

3. Do you have different price levels for us?With our numerous suppliers, different price levels are available with us, so we are able to help you win more customer from different markets requesting for high, medium and low prices.
